The Story
Panzer Fight Stick 5
Machined from solid blocks of aluminum and built like no other fight stick on the market. The Panzer Fight Stick 5 is a three-piece precision-engineered chassis designed for strength, modularity, and a clean premium aesthetic.
Download the Build GuideThe Origin
The Panzer Fight Stick 5 is the realization of a plan that started in 2016 while floating around the Pacific Ocean on deployment—build a complete Panzer Fight Stick machined entirely from solid aluminum and anodize it. After several iterations, false starts, and lessons learned, the PFS5 is the culmination of nearly a decade of refinement.

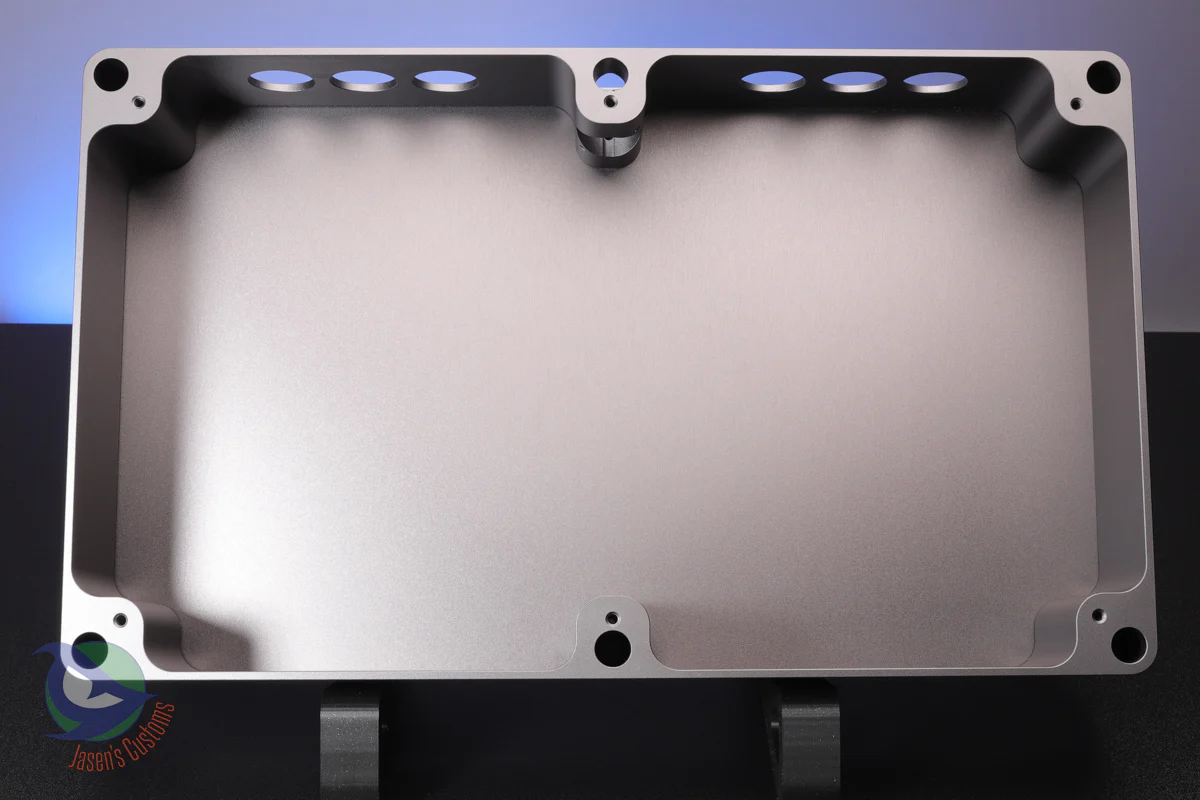

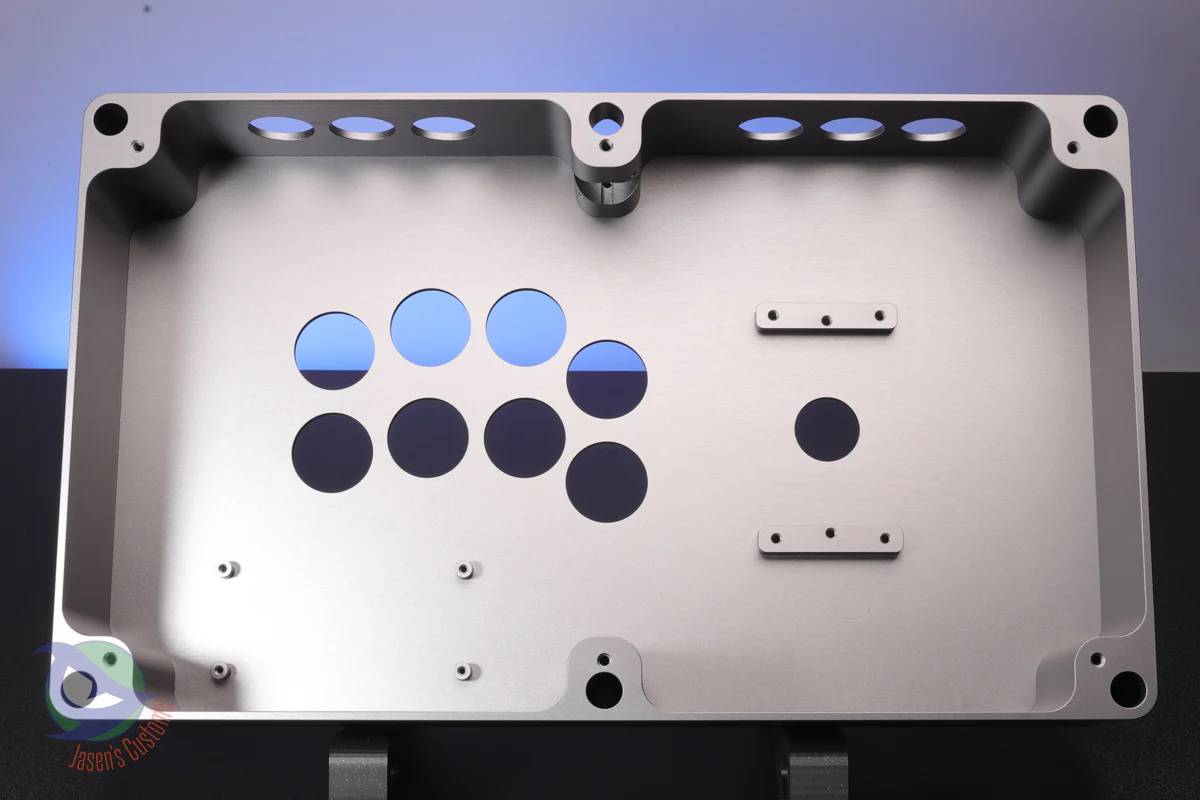

The chassis (frame), top panel, and bottom panel fit together in a strong, robust assembly that requires no additional internal supports—unlike hollow plastic fight sticks that rely on large circular structural reinforcements inside the shell.
Why Solid Aluminum?
Construction Details

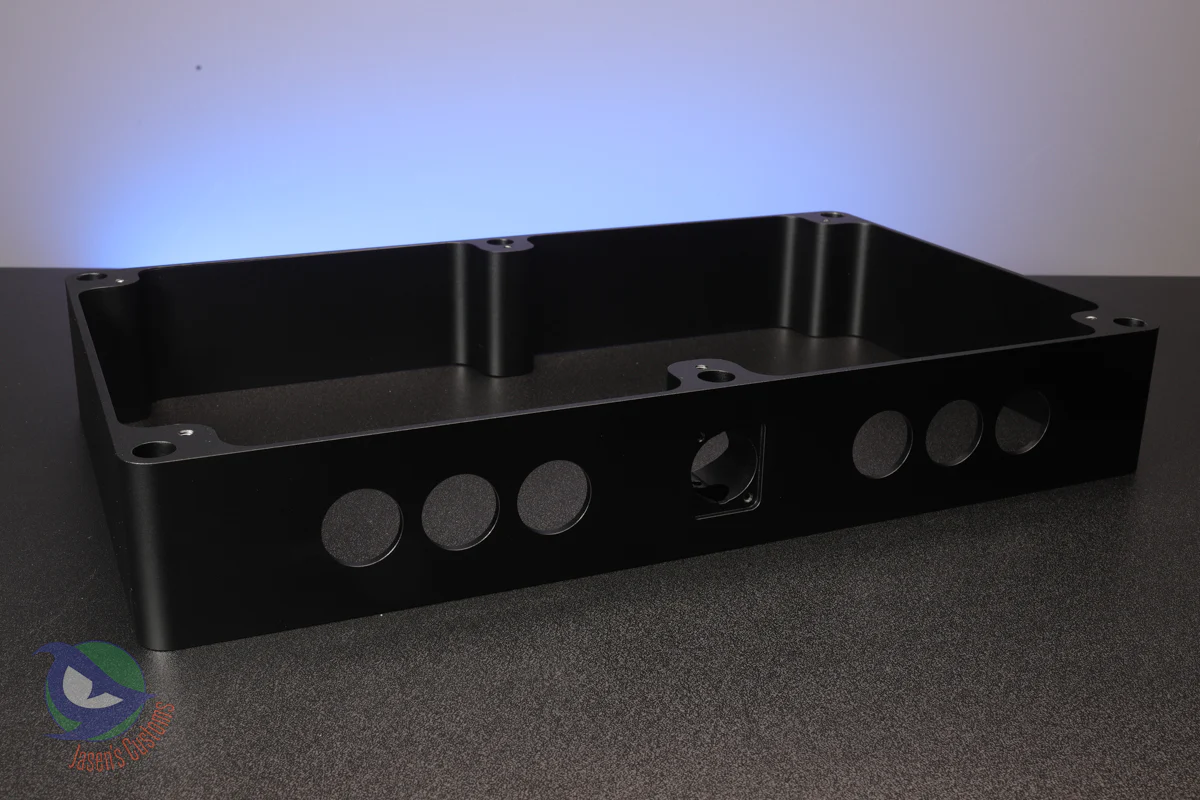

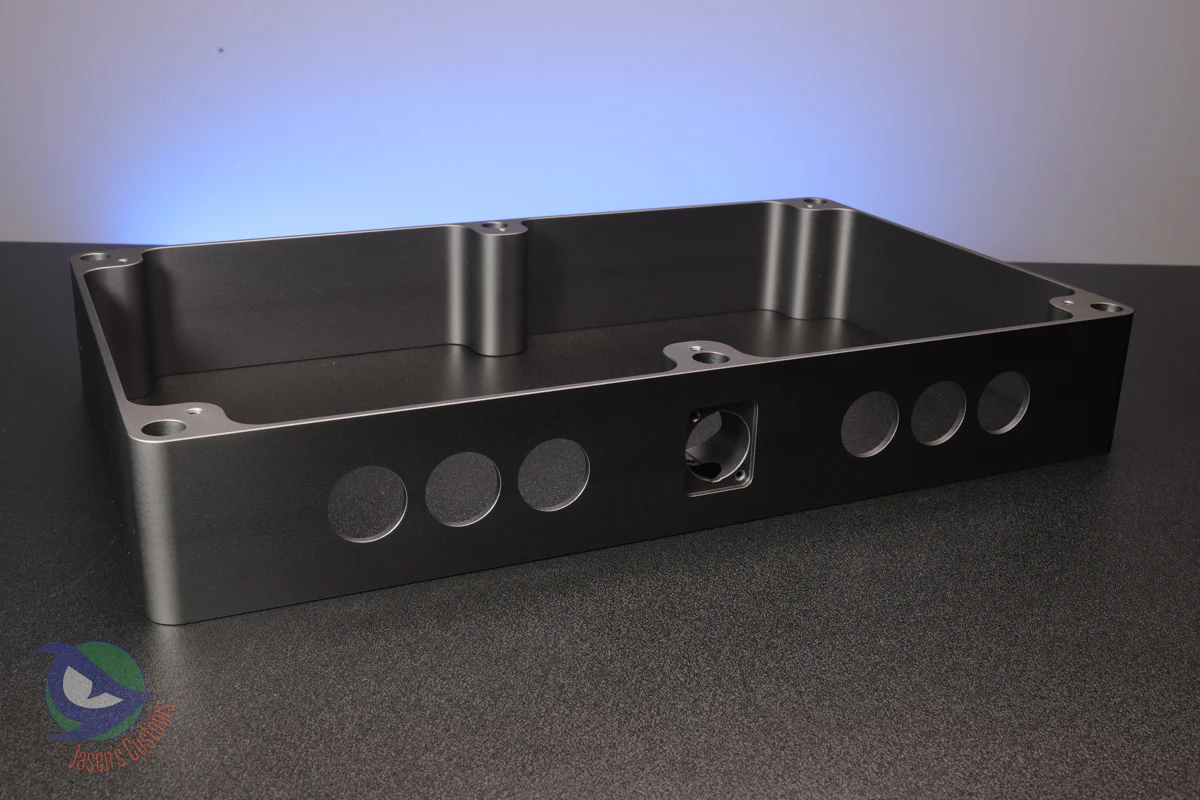

Front Panel
6× 24mm holes for Start, Select, Home, L3, R3, and TP Click buttons. USB passthrough housing is recessed into the case with #4-40 threads—no surround needed for a clean finish.

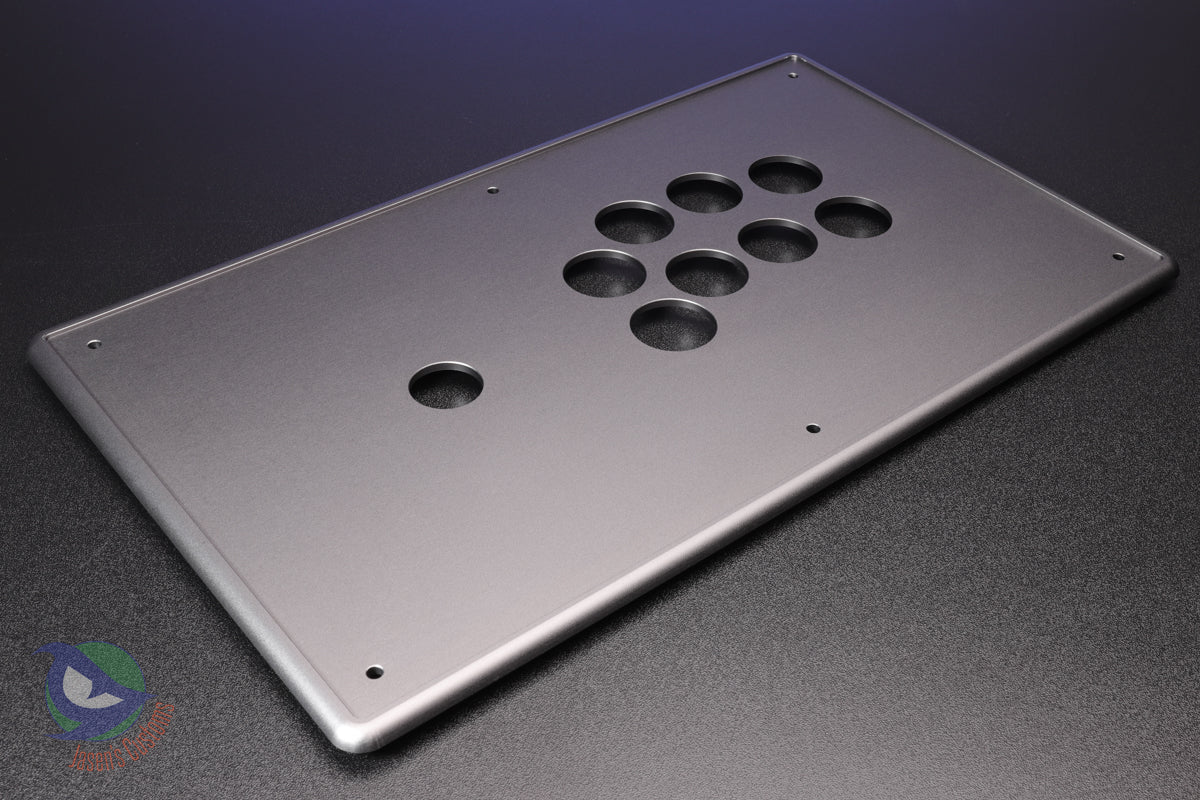

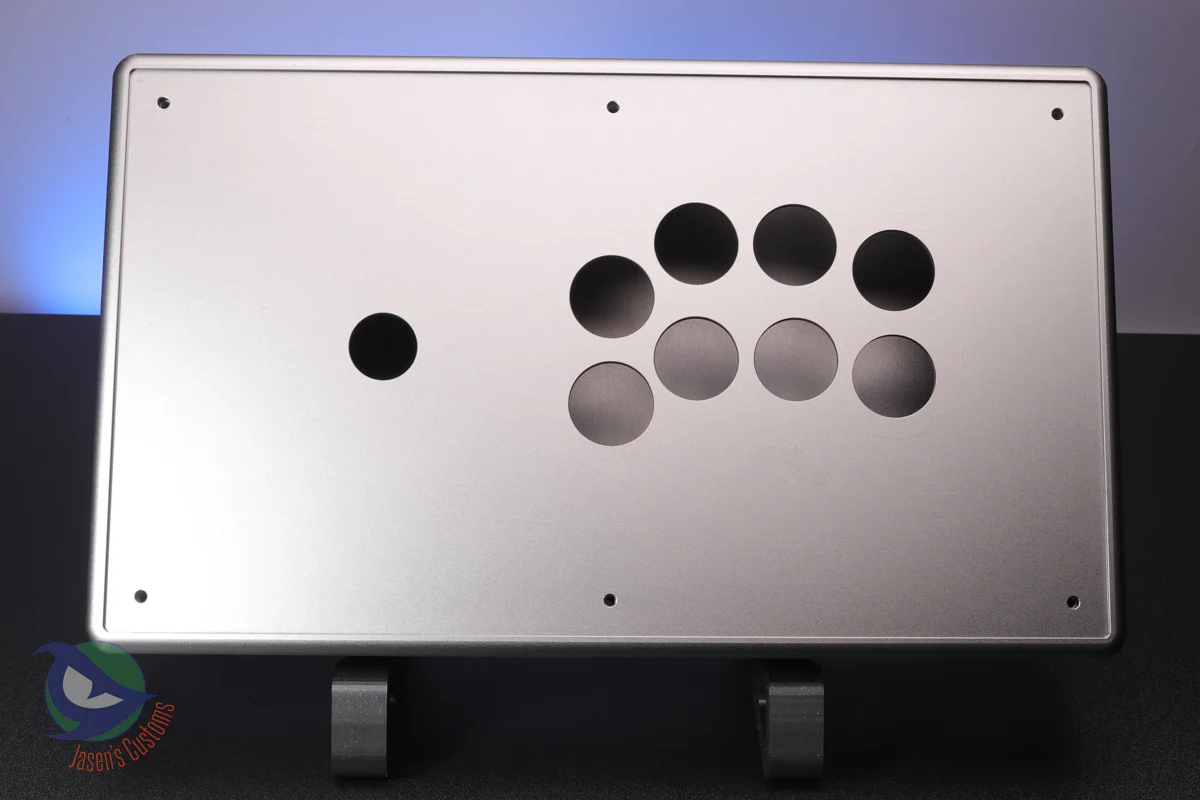

Top Panel
Sold separately for full layout flexibility. 4× internal PCB mounting points (PS360+, Brook, IPFB, etc.) with included #4-40 screws. Lever mounting points available on lever-based panels.

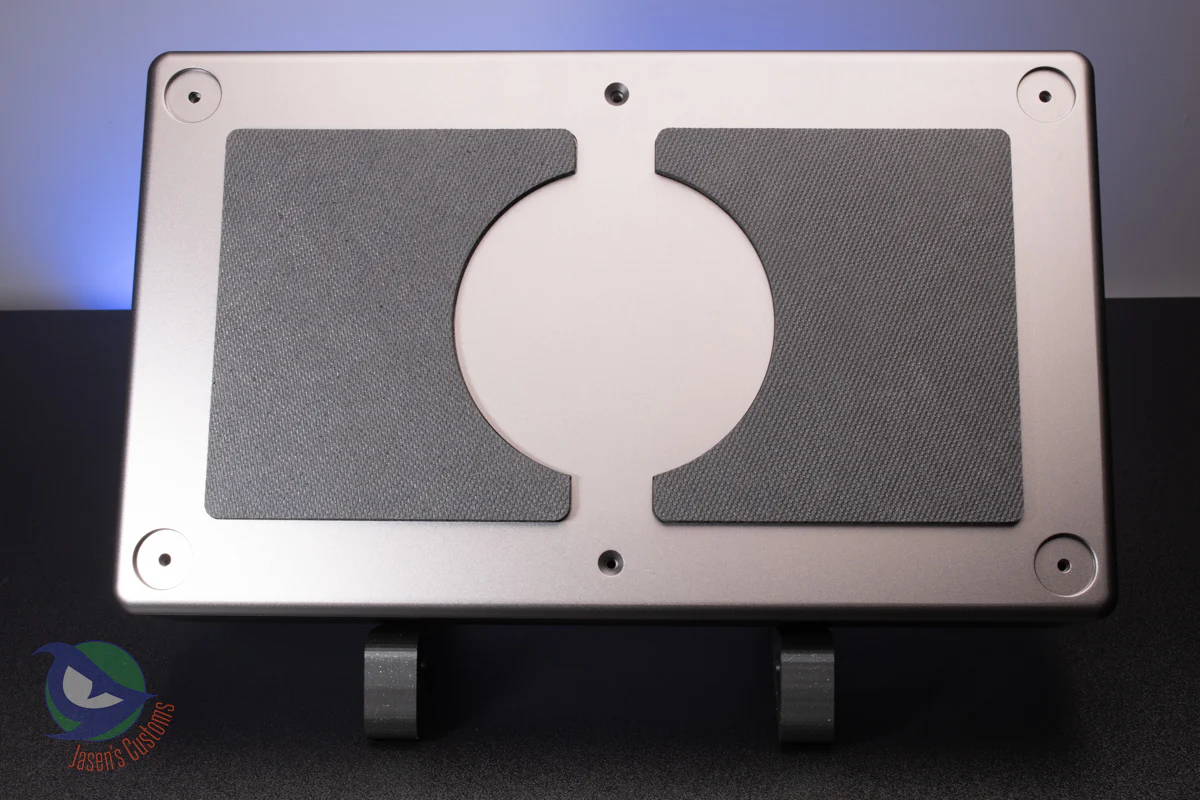

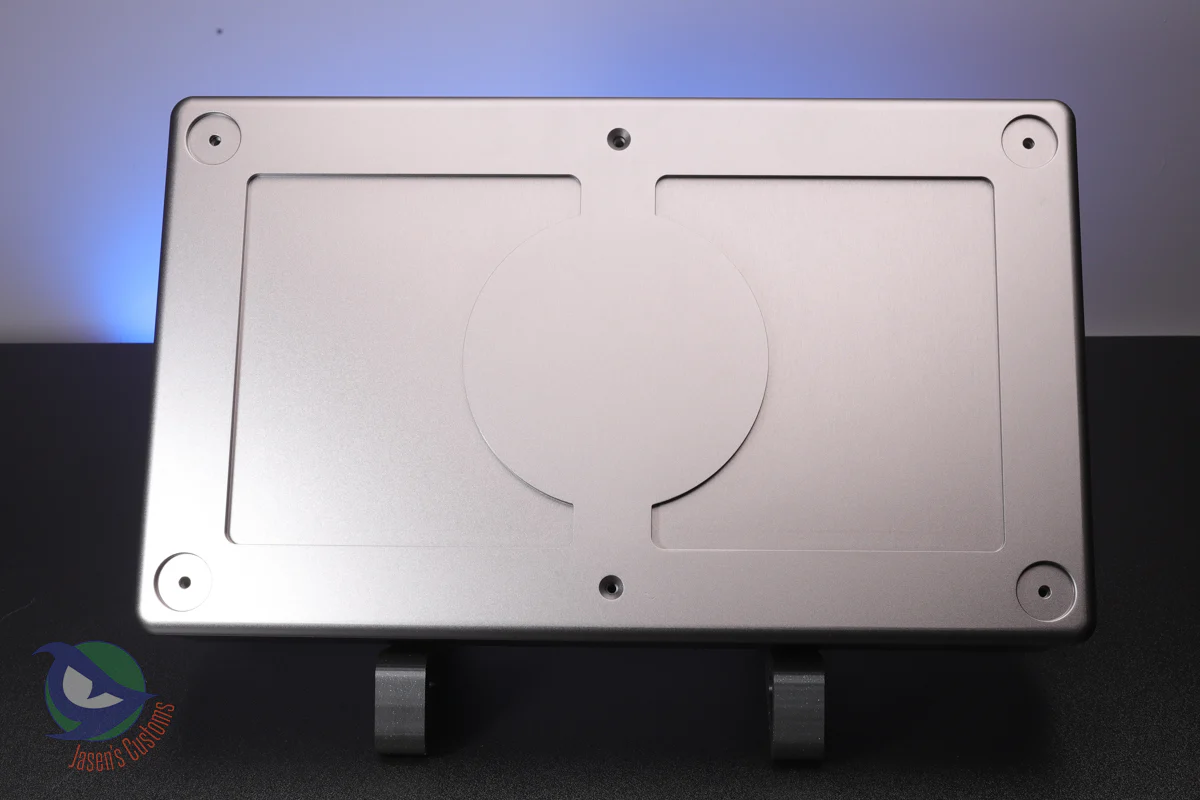

Bottom Panel
4× rubber feet and 2× 1/4" recessed pads for grip and stability. Secured with 6× M4 stainless steel screws that also serve as assembly attachment points. Do not omit the feet screws.
Plexi Overlay
Required for assembly. Fits into the top panel for a nearly seamless finish. Printed plexi is highly recommended and $20 off when purchased with the chassis.
Specifications
| Parameter | Detail |
|---|---|
| Overall Dimensions | 14.5 × 8.5 × 2.5" (with bottom panel installed) |
| Chassis + Bottom Weight | 7 lbs |
| Material | CNC-machined solid aluminum, anodized |
| Front Buttons | 6× 24mm holes (Start, Select, Home, L3, R3, TP Click) |
| USB Passthrough | Recessed housing with #4-40 threads (no surround required) |
| Bottom Fasteners | 6× M4 stainless steel screws |
| PCB Mounting | 4× internal mount points (#4-40 screws included) |
| Feet | 4× rubber feet + 2× 1/4" recessed rubber pads (PSA backing) |
We recommend screw-in buttons for the Panzer Fight Stick 5. The overall thickness of the chassis is a bit extreme for snap-in buttons. You will need 6× 24mm buttons for the front panel.
Wiring

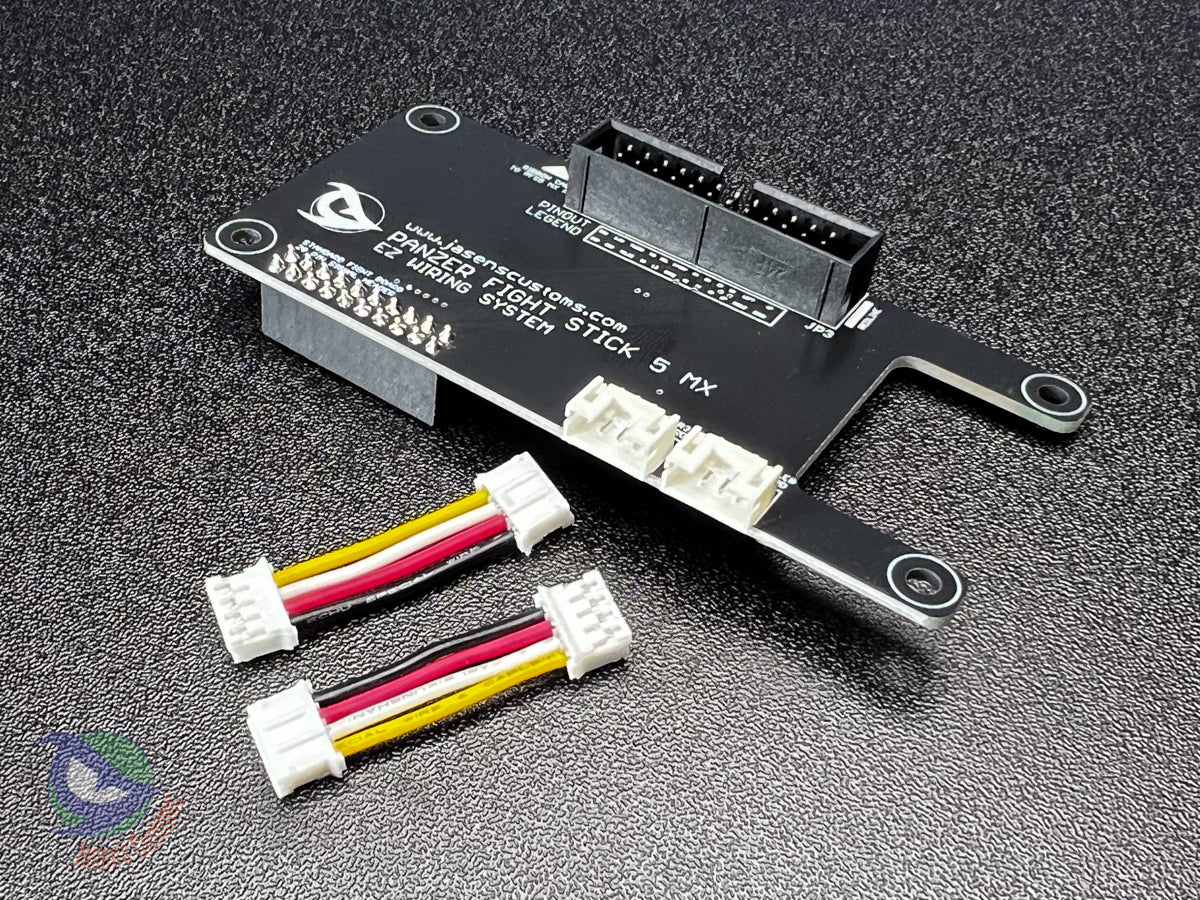

The chassis comes with the base EZ Wiring Hat, interconnect wires to the MX panel, and connection wires to your fighting board. Your MX Panel (sold separately) includes its own wiring to connect the panel EZ Build PCB to the front buttons. Simple, organized, and clean.
What's Included
- Chassis (main frame)
- Bottom Panel
- Assembly Hardware
- 4× Rubber Feet
- 2× Rubber Pads with pressure-sensitive adhesive
- Main EZ Wiring PCB, Fight Board connection wires, and interconnect Ribbon Cable for MX Panels
You Will Need to Provide
- Panzer Fight Stick 5 Top Panel (sold separately — choose your layout)
- Plexi Overlay (printed plexi recommended — $20 off with chassis purchase)
- USB Passthrough
- Internal USB Cable
- Fighting Board (Brook, PS360+, IPFB, etc.)
- 6× 24mm screw-in buttons
- External USB Cable
One chassis. Swappable layouts. Built to last a lifetime.
