The Story

Final Stock - We have decided to conclude our support for commercial fight sticks to focus on the Panzer Fight Stick lineup where we are most able to ensure your fight stick investment will last across generations of consoles. Once these are out of stock, they will no longer be produced. We are proud to have been able to help arcade sticks last longer than intended over the last 9 years and thank you for your support. Consider buying a Panzer Fight Stick which will always be easy to upgrade and never beholden to a large manufacturer's bottom line.

Mad Catz TE EZ MOD

Modify your Mad Catz TE/VS/TE-S/TE+S/Brawl Stick/Fight Stick Pro to use any of Brook’s PCBs easily. Will also allow install of custom Pico Fighting Boards that have been adapted to the Standard Fight Stick PCB layout. This EZ MOD is allows for MINIMAL modifications to your MCZ stick replacing the home area PCB and connecting to the new fighting board using the included wiring. You will need to modify (cut and strip) the ribbon cables that come off of the button PCB in each of these sticks and connect them to the screw terminals on the Brook PCB, but that’s the hardest part.

This EZ MOD does work on all MCZ sticks that use the “home” area easily, with one minor difference for the MCZ SE sticks. The SE series has a small PCB for the START and SELECT buttons with connecting wires that require some splicing. Its’ not hard, but it should be noted that does require a splice for the lock out ground.

Recommended accessories:

  1. Brook PCB (any works) or Pico Fighting Board
  2. PCB feet to mount your fighting board of choice to the case.

Recommended tools:

  1. Phillips screw driver
  2. Allen Key Set
  3. Wire cutters and Strippers

INSTALLATION NOTES

Mad Catz TE EZ MOD - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

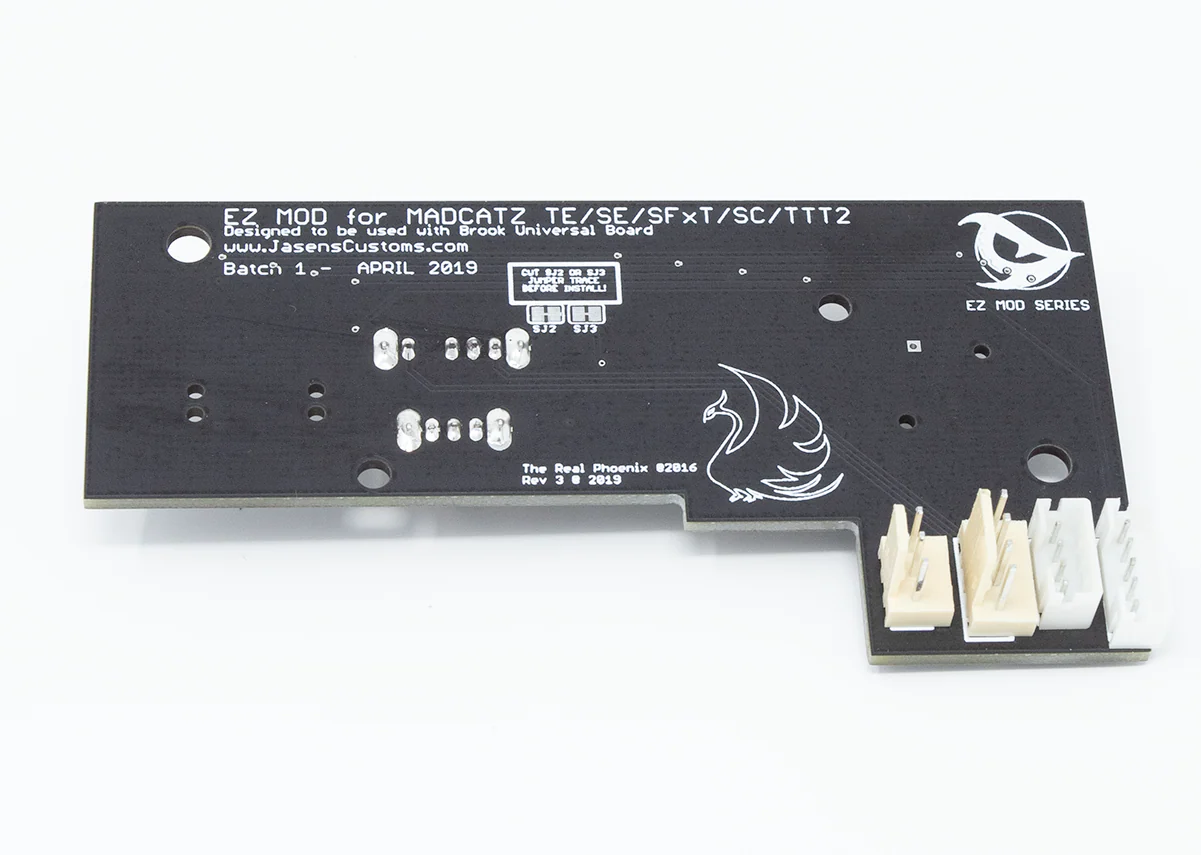

Mad Catz TE EZ MOD - Image 3

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

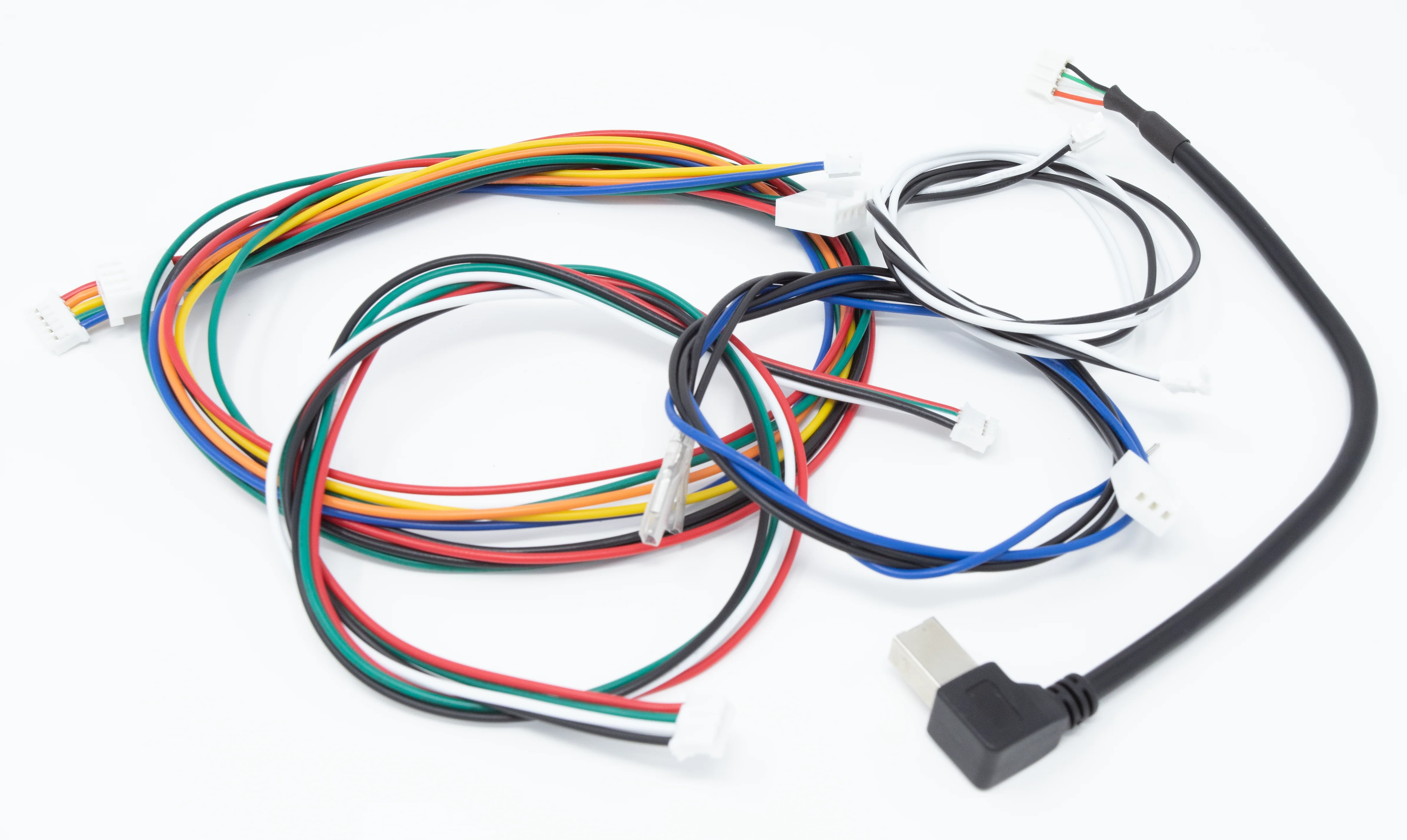

Mad Catz TE EZ MOD - Image 4
